Thread: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

  1. #1

    Lightbulb Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Warning: even more pic heavy than usual

    UPDATE DEC 10, 2010: Eagletac has recently revised the M3C4 SST-50 to a new version with a deeper and smooth reflector, for more throw. Please see my specific review of that light for more info.



    Eagletac has updated its “Military” line of high-output lights (i.e.. M2C4/M2XC4) in a revised build known as the M3C4. A wide variety of emitter types are available in the M3C4 format, including all of those used previously in the M2-series light. But they have also added a few new options, two of which are reviewed here – the 3xR5 XP-G version, and the SST-50 version of the M3C4

    Manufacturer Specifications: Common Specs for M3C4 Series
    • New one-piece flashlight head design (from the top of the knurling area to the battery contact point behind the head). This allows optimal LED heatsink capability and operational reliability. The flashlight head is not sealed and user can gain access to the inside of the lens and reflector.
    • New durable hard anodization coating in HA (type III) finish (40 μm in thickness and 350-380 HV in hardness).
    • New Reflector design in L.O.P. finish
    • The tail-stand tail-cap receives a new durable protective coating. The package also come with a para-cord lanyard with darken holding clip that fits in the tail-cap lanyard hole. The controller ring also receives the new durable protective coating.
    • The Flashlight head and the body are o-rings and square-rings sealed for operating in harsh and wet environments. Reverse battery polarity protection has been implemented on the battery tray for each battery channel. The water-proof tail-cap now uses stainless steel 304 mounting screws with hex heads.
    • Included accessories:
    • CNC machined 304 Stainless steel bezel
    • Included diffuser filter. YRGB filter kit (yellow for fog and rain) is optional.
    • Paracord lanyard with darken pocket clips and split ring
    • M series nylon holster

    Luminus SST-50 Specs:
    • Luminus SST-50 W65S WJ LED (maximum output, single LED)
    • O.T.F. lumen output: 16/56/172/376/800
    • LED lumen output: 20/70/215/470/1000
    • Battery: two 18650 rechargeable or four CR123A primary
    • Runtime: 1.5/3.5/8/28/100+ hours
    • Estimated MSRP: ~$170

    Triple CREE XP-G Cool White R5 LED Specs:
    • Triple CREE XP-G Cool White R5 LED (maximum output, three individual LEDs)
    • O.T.F. lumen output: 15/55/172/593/800
    • LED lumen output: 18/70/215/475/1000
    • Battery: two 18650 rechargeable or four CR123A primary
    • Runtime: 1.5/3.5/8/28/100+ hours
    • Estimated MSRP: ~$160

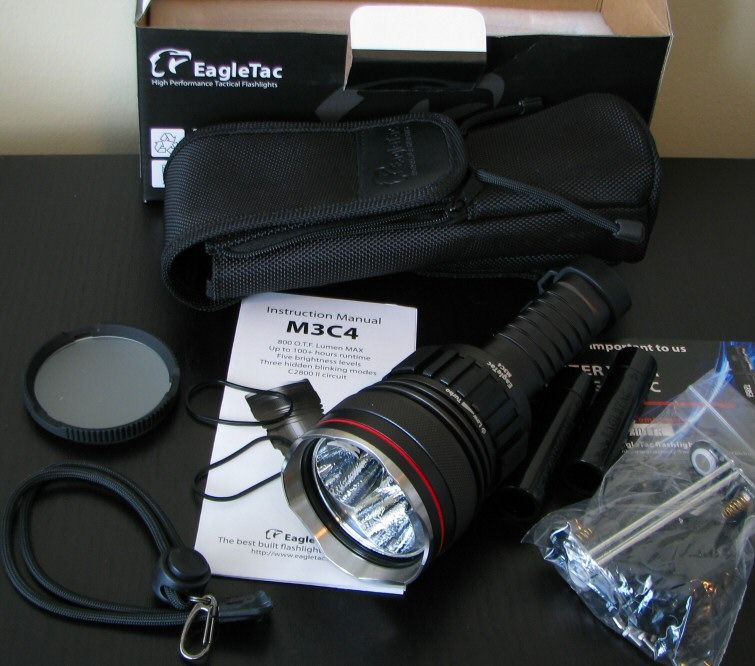

    Packaging is the same for all members of the M3C4 series – with stickers on the outside identifying the specific emitter and tint of the light inside.

    Packaging is similar to the earlier M2-series, but with one extra – an included bezel-replacing diffuser. Also included with the light are extra o-rings, wrist lanyard, warranty card and manual, primary battery holders, clicky-switch battery carrier, and a good quality nylon case that fits the light well.

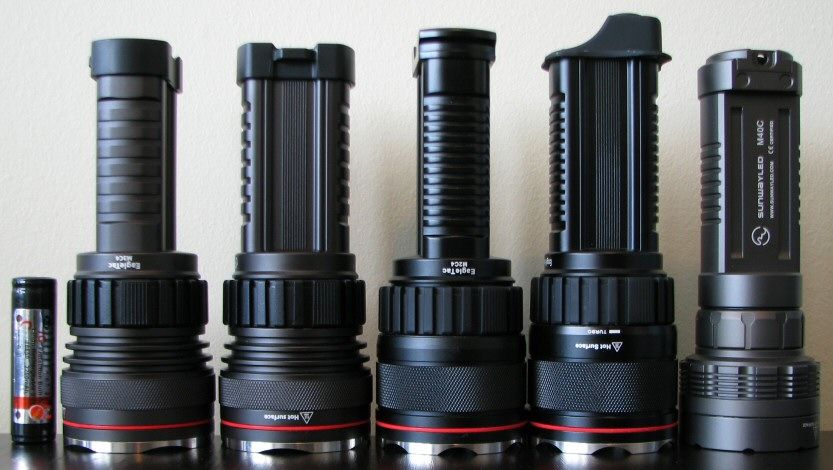

    From left to right: AW Protected 18650, M3C4 SST-50, M3C4 3xR5 XP-G, M2XC4 3xR2 XR-E, M2C4 SSC P7, Sunway M40C.

    All weights below are without batteries installed, but include the regular carrier.

    M3C4 SST-50: Length: 158mm, Width: 61mm (bezel), Weight: 334.7g
    M3C4 3xR5 XP-G: Length: 158mm, Width: 61mm (bezel), Weight: 374.1g

    M2C4 SSC P7: Length: 163mm, Width: 61mm (bezel), Weight: 351.7g
    M2XC4 3xR2 XR-E: Length 160mm, Width: 61mm (bezel), Weight: 395.8g

    As you can see, overall weight and length has dropped slightly from the earlier M2 series lights. Bezel diameter has not changed.



    The overall build looks similar to the M2-series, but there a few noticeable upgrades.

    The head is now a single-piece unit, apparently to help with water-resistance and length. However, the bezel is still removable, and you can still access the reflector/lens by removing the outer ring below the bezel (there is a retaining ring holding the lens in place - not shown). But there’s no reason to open the head unless you need to replace a broken lens. Eagletac cautions against trying to “clean” the inside of the lens, as there is an anti-reflective coating you are likely to damage.

    As with the M2-series, the light features anodized screw threads, allowing for head lock-out. Lube was a bit overly generous on my sample.

    The contact springs in the head are covered (as before) - although the contact surfaces not as gold-colored as they were on the M2-series lights.

    The lights apparently come in two types of type III anodizing – dark gray as shown here (similar to my Sunway lights), or black. Regardless, the plastic control ring and tailcap cover are made of black plastic. Anodizing quality is top-notch on my samples. There is plenty of ridge detail to help with grip, plus some medium-strength knurling on the head. Lettering is sharp and clear, bright-white against the dark background.




    Unfortunately, the top of the battery handle still has four Phillips-head screws holding it to the battery tube portion. I would prefer that this were a single piece of aluminum – I recommend you periodically check these screws to make sure they don’t loosen up and compromise water-resistance of the battery handle.




    The battery carrier has been updated slightly as well. Note that flat-top high-capacity cells may not work in the carrier, as the plastic contact ring around the positive terminal is slightly raised. You can use CR123A cells with or without the included plastic holder.




    The tailcap region seems to be more securely fashioned on these M3 series lights. The cover is a tight fit now, with a well-formed o-ring underneath. Note also the use of hex screws here. Included is a hex Allen key if you need to tighten the screws or want to swap the battery carrier for the clicky version. But be advised that I was unable to loosen one of the screws on mine with the key – it seemed to be just a touch too small (i.e. kept spinning inside the screw head). A 7/64” hex screwdriver did the trick for me on that one.

    UPDATE: Scroll down this thread to see that at least one CPF user reports a problem with a stripped hex screw when trying to swap the tailcap. Note that Eagletac's warranty specifically does NOT cover damages from stripped mounting screws!

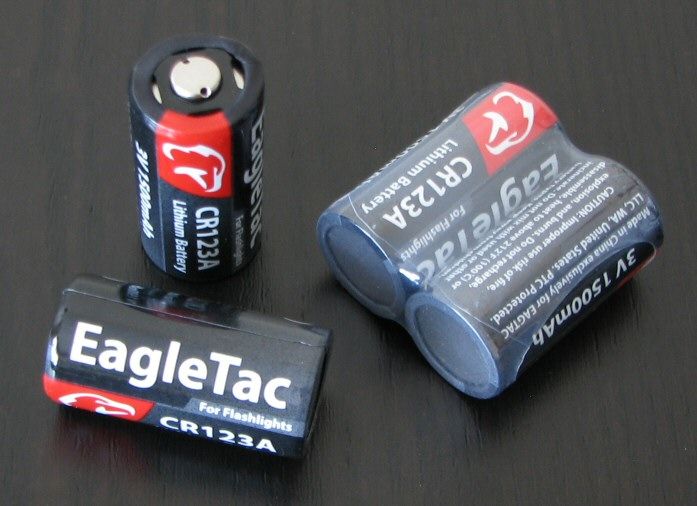

    Eagletac also provided me with a sample of their own branded primary CR123A batteries. I haven’t tested these yet, but will add them to my CR123A battery round-up when I get the chance.

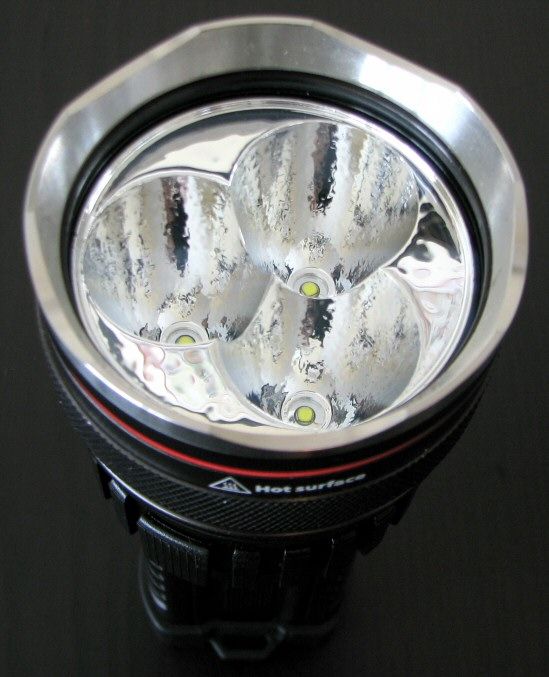

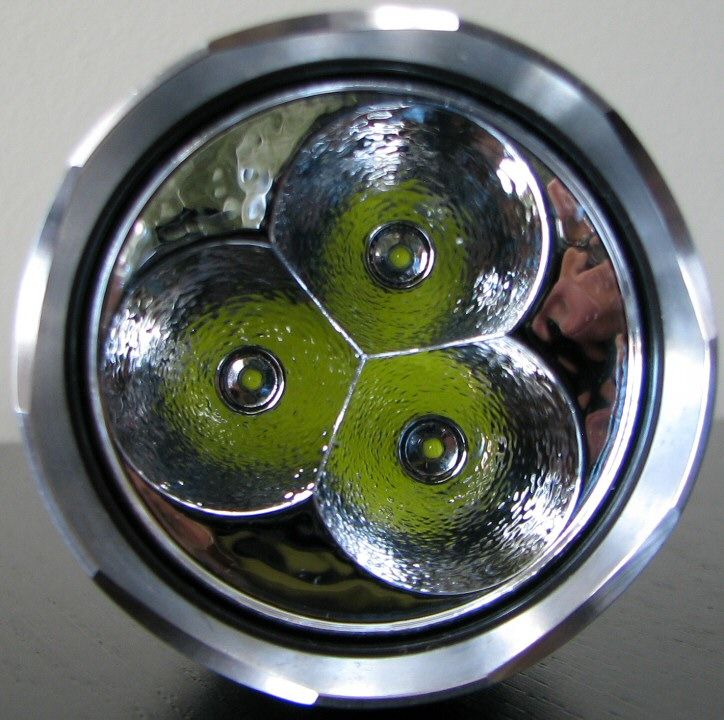

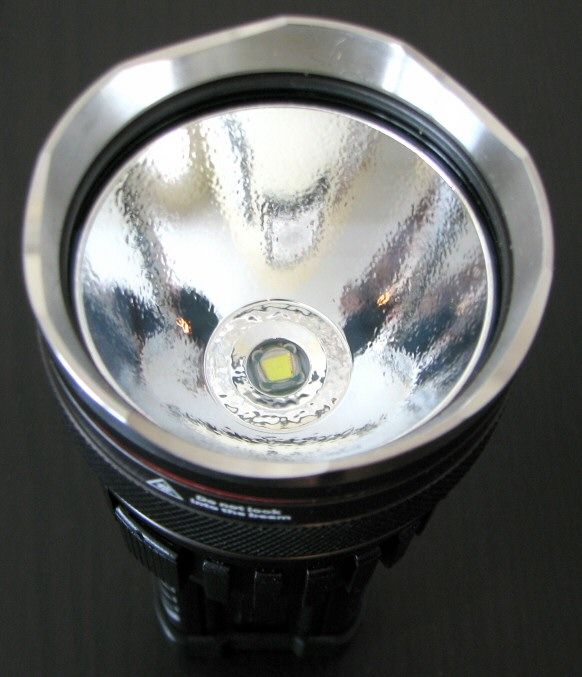

    The emitters appear to be well centered on my samples. Like before, the 3xCree option has overlapping reflector wells.

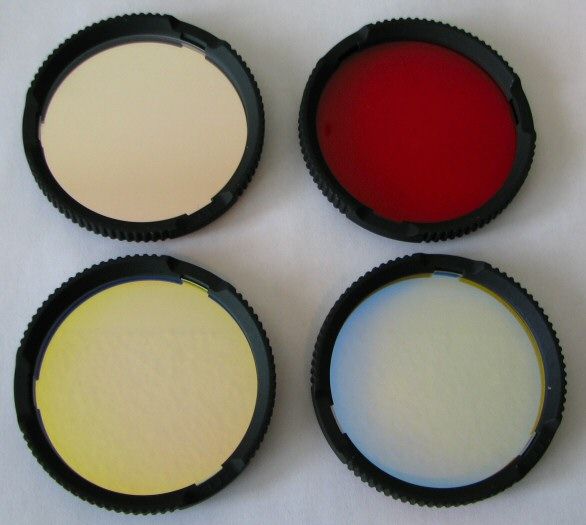

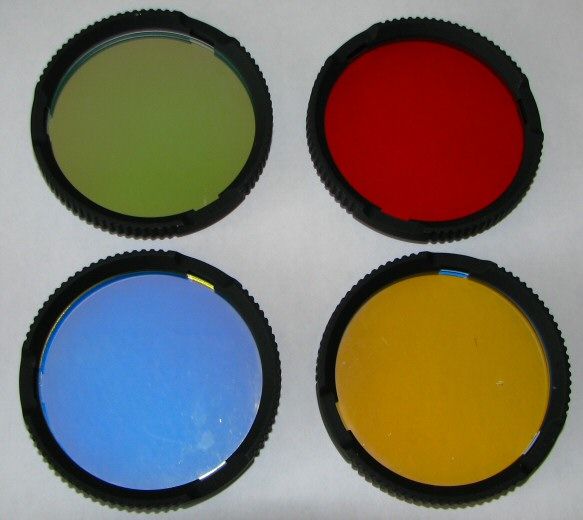

    Eagletac also sent their optional YRGB colored filter kit (yellow, red, green, blue). Like the included diffuser, these screw on as a replacement for the stainless steel bezel ring.

    Without a flash:


    With a flash:


    The filters seem to be of good quality, with all but the red one showing colored reflections upon angled lighting. Scroll down for beamshots.

    Beamshots

    Sorry for the quality of the white wall beamshots – I’ve recently moved, and haven’t had a chance to set up a proper beamshot closet yet. What you are looking at below is primed drywall that hasn’t been painted yet – so there are still some imperfections.

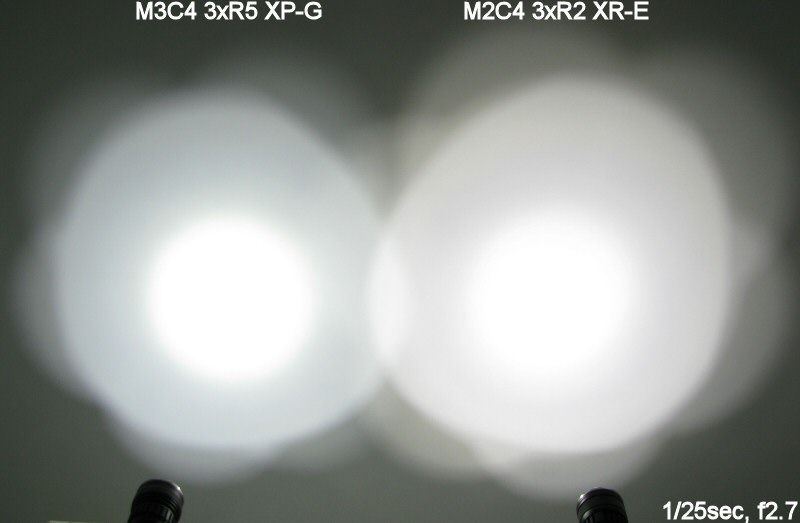

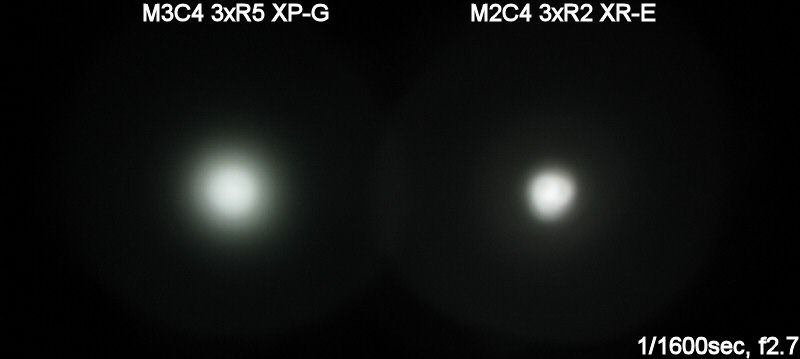

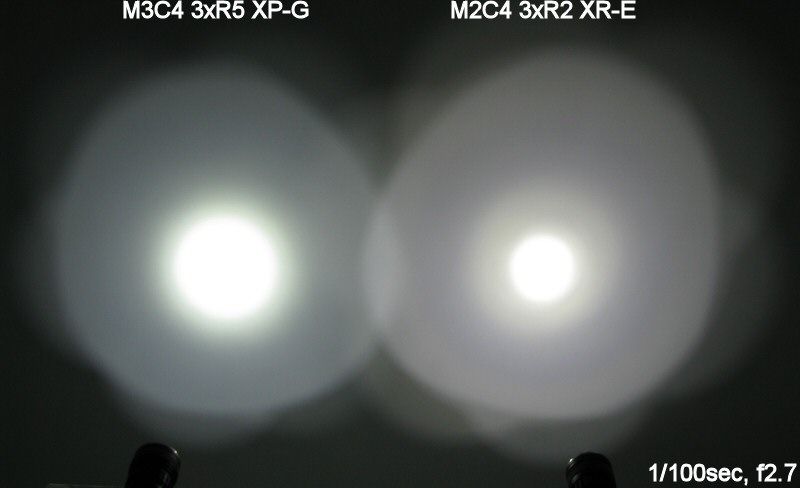

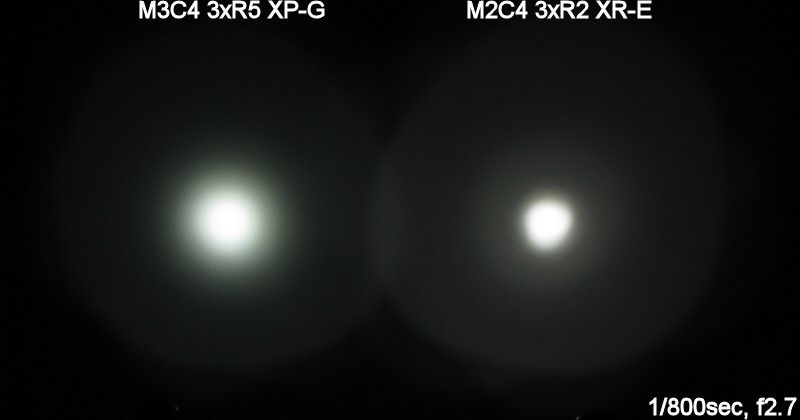

    Here are some up-close shots comparing to the new M3C4s to my M2XC4 3xR2 XR-E and M2C4 SSC P7. All lights are on 2xAW protected 18650, ~1m from the wall:






    As expected the M3C4 3xR5 XP-G still shows a “daisy-pattern” spillbeam (common on multi-emitter lights with overlapping wells). Also as expected, throw is also reduced somewhat from the M2C4 3xR2 XR-E (although you would only notice at a significant difference - at up to ~5m, they are really pretty equivalent).

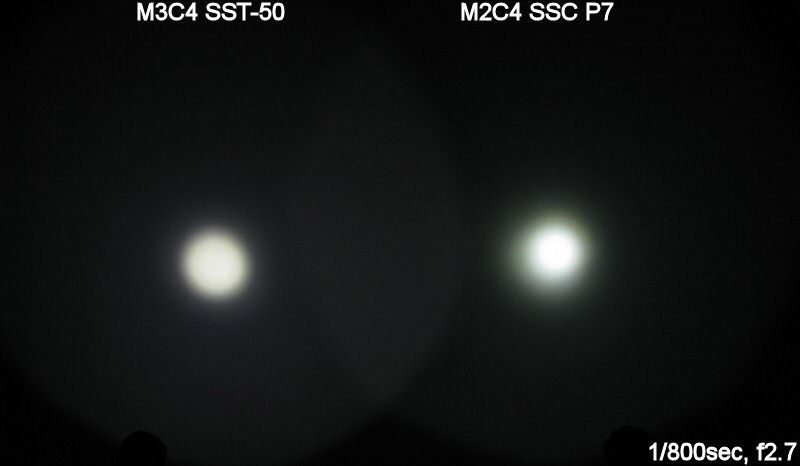

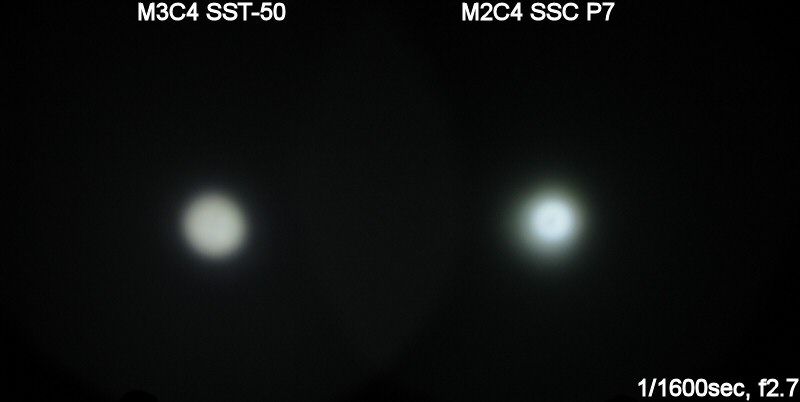

    The M3C4 SST-50 has a similar beam pattern to the M2C4 SSC P7. Both lights have a wider (but dimmer) spillbeam compared to the multi-emitter options. The hotspot of the M3C4 SST-50 is probably the most defined of all the M2- and M3-series lights in my possession.

    Not shown, but up-close (i.e. <1m) there is a noticeable void in the centre of the M3C4 SST-50’s beam. Of course, who would be using this light at <1m …

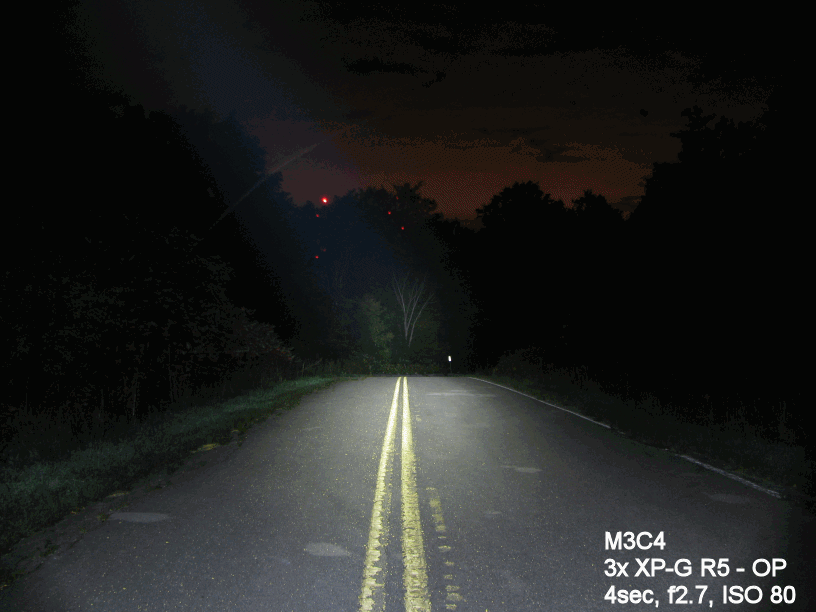

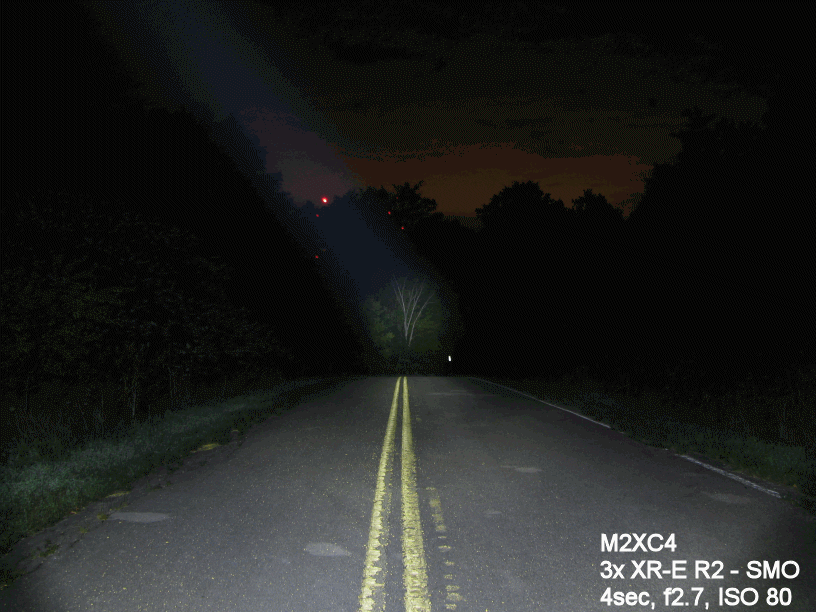

    I've recently added some additional lights to my 100-Yard Outdoor Beamshot Round-up, including the lights in this review. Check out that round-up thread for more details on the testing method, plus higher quality JPEG images of all lights. For now, here are a couple of animated GIFs of relevant M2- and M3-series comparisons:







    To better show what the optional YRGB filter kit and standard diffuser look like, here are comparison pics of the M3C4 3xR5 XP-G, all taken at ~1m with my camera’s standard Sunlight white balance correction (~5200K).

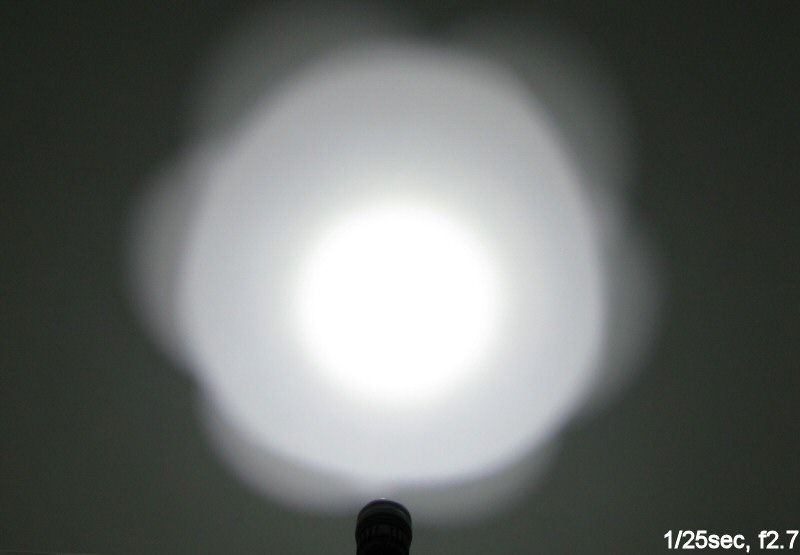

    M3C4 3xR5 XP-G

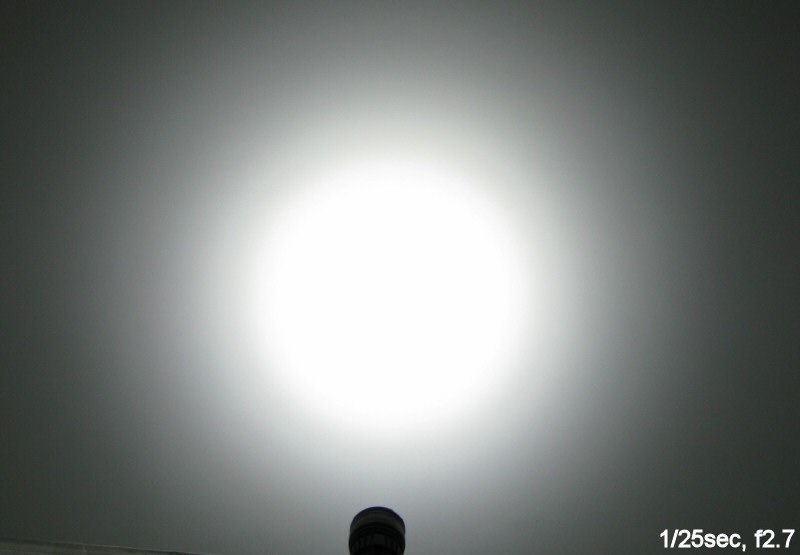

    Diffuser


    Yellow Filter

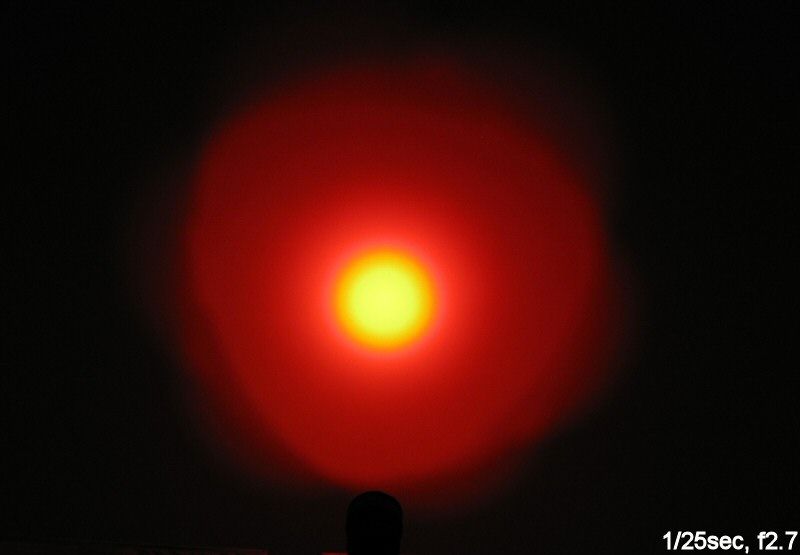

    Red Filter

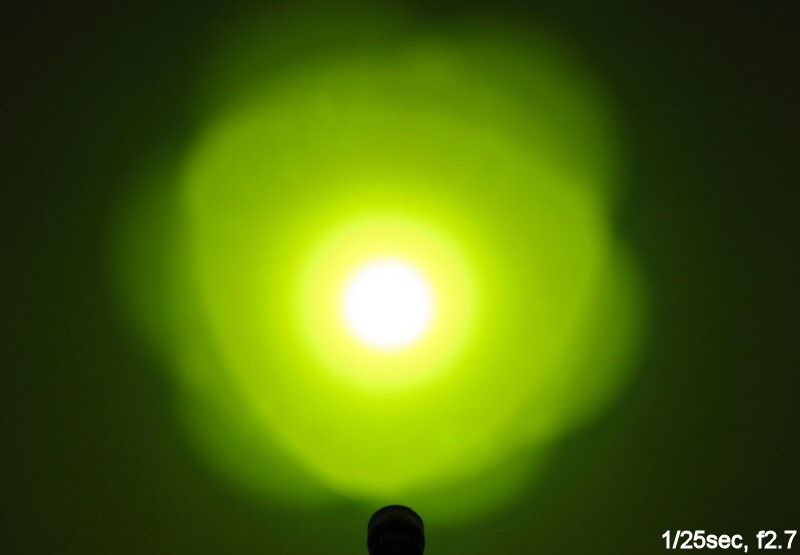

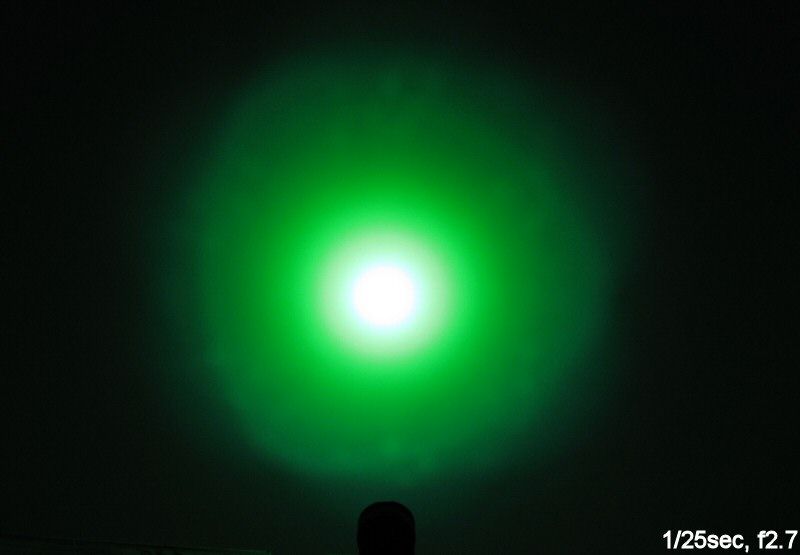

    Green Filter

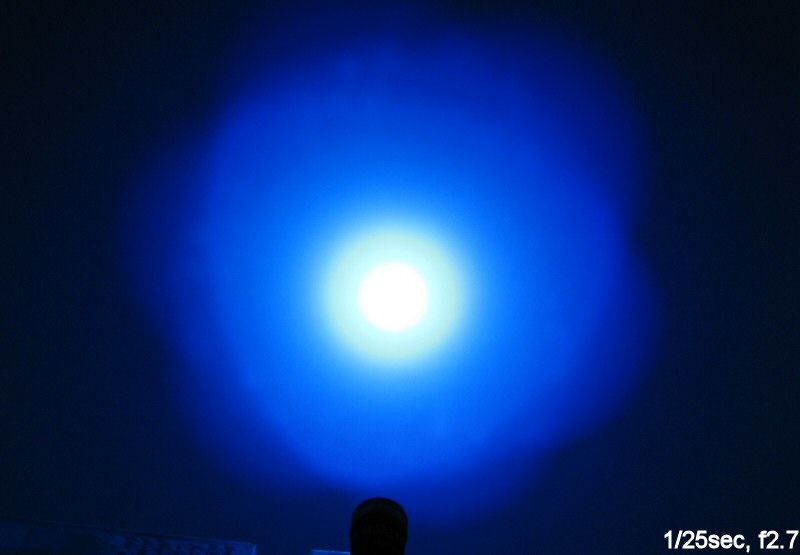

    Blue Filter


    Not surprisingly, the Yellow and Blue filters let the most light through (i.e. Cool white emitters are relatively deficient in Green and Red wavelengths). The Yellow filter is not as green as it may appear above – that’s an artifact of the defined color balance on the camera.

    User Interface

    The control ring functions similar to the earlier M2-series lights, but again with a few upgrades.

    With the standard battery carrier, there is always a standby current if the head is fully tightened against the body.

    To turn the light on, turn the control ring clockwise (with the light pointed away from you). The light will proceed out of Standby and through Moonlight, Lo, Med, Hi and Turbo in sequence. The spacing between modes is only approximate, but I didn’t find either of my samples to be too far out kilter.

    The difference from the M2 series is that strobe is now relegated to a “hidden” mode. To access, rapidly switch from Turbo to Standby and back to Turbo again. This will replace Turbo with Strobe. Do this switch again to advance to Beacon, and again for SOS (note the manual has Beacon/SOS order reversed). Do it once more to return to standard output modes with Turbo.

    Alternatively, you can loosen the head (or click off the optional clicky switch) to break the connection to the battery carrier and fully shut off the light. This also restores the standard output modes upon re-activation.

    Note that the light moves through the output levels in a gradual fade into each level over ~1sec or so as you turn the ring (i.e. you don’t see a sharp jump in output).

    With the forward clicky switch module installed, the light can be turned on in any mode by the switch (with the control ring controlling the output level as before). There is no standby current with the clicky switch in the off position.

    Note that there is a ~1sec lag to activation when the clicky switch is soft-pressed or clicked on. There is also a Med output “pre-flash” if you activate the switch with the ring in the Moonlight or Lo mode state (i.e. the light comes in Med, and fades down to Lo/Moonlight).

    Parasitic Standby Drain

    The parasitic standby drain of the M2 series was always fairly high at ~720uA (reported by HKJ). For a pair of standard 2200mAh 18650 in series, that translates into just over 4 months before the batteries would be fully drained.

    I measured my M3C4 samples and found 1130uA (3xR5 XP-G) and 1170uA (SST-50) on standby mode. That would translate into 81 and 78 days, respectively, before fully charged 2200mAh batteries would be completely drained.

    I therefore recommend you store the lights with the head locked-out, or use the optional clicky switch battery carrier. There is no standby current with the switched clicked in the off position.

    No PWM

    As with the M2-series lights, there is no evidence of PWM on any mode. The lights appear to be fully current-controlled at all levels.

    Strobe/SOS/Beacon



    Strobe is a reasonably quick 7.9Hz.



    Beacon is actually a slow strobe – 2Hz freq.

    Testing Method: All my output numbers are relative for my home-made light box setup, a la Quickbeam's flashlight reviews method. You can directly compare all my relative output values from different reviews - i.e. an output value of "10" in one graph is the same as "10" in another. All runtimes are done under a cooling fan.

    Throw/Output Summary Chart:

    Note: All throw measures below were taken at 5m and extrapolated back to estimates at 1m. 1m actual measurements would give you highly misleading results, as the beams of thrower lights don't have time to converge by that distance.

    Also, my throw numbers may be lower than some - I take all readings from the center of the hotspot. A number of emitters produce a brighter edge of the hotspot (i.e. a relatively dark center). However, since it is hard to reliably measure anything but the center, I stick with that for my measures.



    Note that the lowest output level (“Moonlight”) is a bit variable for the M3C4 lights. While in keeping with the lowest possible Lo modes of other current-controlled lights, it is now as low as some of the PWM-based lights.

    Output/Runtime Comparison

    Note: Effective January 2010, all CR123A runtimes are now performed on Titanium Innovations batteries. You can compare the performance of these CR123A cells relative to the Duracell/Surefire cells used in my earlier reviews here. These new light results are marked by an "*" in the graph legend








    Basically, thanks to the newer emitters, max overall output of the new M3C4 lights reviewed here has increased somewhat. Overall runtime characteristics do not appear to have appreciably changed much.

    Note that while my lightbox reports a higher output score for the 3xR5 XP-G version over the SST-50 version, my ceiling bounce gives the opposite result. The very different beam profiles makes it hard to reliably ascribe a specific relative output.

    Potential Issues

    Although the build has a number of improvements, the handle is still composed of three separate pieces (tailcap, battery tube, front portion that screws into the head). Although each section has its own o-ring, you should keep an eye on all the screws to make sure they don’t loosen up with time (and thus impair water-proofness).

    Standby parasitic drain is still very high for the M3C4 series – enough to fully drain a pair of 2200mAh 18650s in less than 3 months. I recommend you store the lights with the head locked out (or with optional clicky battery carrier in the clicked off position).

    The is a Med-level pre-flash when using the clicky switch with the control ring set to Moonlight or Lo. There is also a ~1sec delay in activation when using the clicky switch to turn on.

    Flat-top 18650 cells may not work in the battery carrier, due to the raised plastic ring around the positive contact plate.

    UPDATE: If you scroll down this thread, you will see at least one CPF user reports a problem with a stripped hex screw when trying to swap the tailcap. As mentioned previously, I had my own difficulties in removing one of the screws - there seems to be some variation in the size. Note that Eagletac's warranty specifically does NOT cover damages from stripped mounting screws!

    Preliminary Observations

    The M3-series lights have a nice set of incremental upgrades to original Eagletac M2-series.

    I particularly like the addition of the two new emitter options reviewed here (SST-50 and 3x XP-G R5). Frankly, I’m a little surprised that Eagletac has kept so many emitter variants for the new M3C4 line (i.e I would have thought they’d drop some of the old M2-series ones). But the option for relatively warm “Neutral White” for many of the emitter types is most welcome – I know a lot of members here prefer warmer tints.

    Build is a uniform improvement over the old M2-series. Although most of the changes are fairly minor individually, the net effect is significant. I particularly like the revised user interface (with strobe et al relegated to hidden modes) and the revised tailcap with hex screws (both the new standard flat and clicky-switch designs). The control ring also seems more consistent in its spacing than the earlier M2-series (although still not exactly equal in all modes).

    The small reductions in weight and height are also appreciated. The lights still feels quite substantial, with significant heatsinking – something some the competitors in this class may lack. The lights now feature a lower Lo mode (although “Moonlight” may be overstating it ). Even minor touches like the fade-in and –out of levels seems kind of classy. And I like the new dark grey anodizing finish.

    That said, there are still a few things that haven’t changed from the M2-series lights that I would like to see different. Chief among these are the relatively high parasitic standby drain (although you can easily lock-out the light). Also, I don’t like the 3-piece body handle design requiring 8 screws and two o-rings to hold the handle together.

    As for the emitters, both the SST-50 and 3xR5 XP-G options give a lot of light – slightly more than their earlier counterparts, the SSC P7 and 3xR2 XR-E. They also have smoother beam profiles (e.g. no dark center void on the SST-50). Of course, if you prefer the earlier emitters (e.g. smaller hotspot on the 3xXR-E), they are still available in the M3C4 build.

    At the end of the day, is there enough to make you want to “upgrade” from an existing M2-series build? That depends on what matters to you – but in most cases, I would suspect not. But if you are in the market for a new light, there is certainly no reason to go for the M2-series lights instead. You can get everything the M2-series offered – and more – in the upgraded M3C4 build.

    One last point - Eagletac has to be among the most generous in terms of bundled extras with these lights. I personally quite like the bundled diffuser, now standard on the M3C4 series.

    UPDATE DEC 10, 2010: Eagletac has recently revised the M3C4 SST-50 to a new version with a deeper and smooth reflector, for more throw. Please see my specific review of that light for more info.

    ------

    The M3C4 lights were provided for review by Eagletac.
    Last edited by selfbuilt; 03-10-2011 at 08:56 AM.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  2. #2

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Thanks for a great review!

    Love how the triple XPG version is superior to the SST50 in every aspect.


  3. #3
    Flashaholic* don.gwapo's Avatar
    Join Date
    Feb 2010
    Location
    My avatar!
    Posts
    933

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by richardcpf View Post
    Thanks for a great review!

    Love how the triple XPG version is superior to the SST50 in every aspect.
    +1.

    Thanks for the review selfbuilt. Love to see the OTF of the triple.
    Pick the pooch!

  4. #4

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Finally the long awaited review. Thanks!

  5. #5
    Flashaholic* HIDblue's Avatar
    Join Date
    Mar 2010
    Location
    California
    Posts
    872

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Outstanding review selfbuilt.

    I especially appreciate the new outdoor beamshot comparisons that flip back and forth between the SST-50 and the 3 x XP-G.

    It really does seem like the 3 x XP-G really outperforms the SST-50. Any idea what the OTF is on the 3 x XP-G?
    My dog ate my flashlight...

  6. #6
    Flashaholic ACRbling's Avatar
    Join Date
    May 2010
    Location
    Southern California
    Posts
    122

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Wow, according to your lux reading's, the 3xR5 throws a little more than the 3xR2.

    Really?

  7. #7
    Flashaholic*
    Join Date
    May 2007
    Location
    Greece/Hellas/Crete
    Posts
    739

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Thanks selfbuilt, really nice effort once again!
    But your review makes Eagletac's flashlight performance a bit mysterious.
    3x Xp-g R5 versus 3x Xr-E R2 there is a barely noticeable improvement in performance, according to ceil bounce results. This is not in par with the emitter difference.
    Also, SST50 was referred to be much worse than P7 edition by various other members.

    That makes me think that quality control of Eagletac is not that good.
    It is kind of luck if you receive a good flashlight?At least according to their specs?

  8. #8

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Thanks for support everyone.

    Quote Originally Posted by richardcpf View Post
    Love how the triple XPG version is superior to the SST50 in every aspect.
    Quote Originally Posted by HIDblue View Post
    I especially appreciate the new outdoor beamshot comparisons that flip back and forth between the SST-50 and the 3 x XP-G.
    It really does seem like the 3 x XP-G really outperforms the SST-50. Any idea what the OTF is on the 3 x XP-G?
    Personally, I think the 3xR5 XP-G is a real winner as well. I quite like the beam characteristics, with the good throw and nice bright corona.

    Like the SSC P7, the SST-50 seems to under perform in the images because of the more defined hotspot with lower throw - and the much wider spillbeam. A wider spill means a dimmer spill. I suppose the comparison shots would have looked better if I had pulled the camera further back - it would have allowed you to see that the SST-50 version lights up a wider area in the foreground.

    Quote Originally Posted by ACRbling View Post
    Wow, according to your lux reading's, the 3xR5 throws a little more than the 3xR2.
    Really?
    No, not really.

    While the 5m lux measures do show the two lights as being equivalent, the long-distance beamshots tell another story (i.e. look at the last animated GIF). It seems to me the 3xR2 XR-E throws better at a distance.

    It may be that these triple emitter lights need longer than 5m to really allow all the beams to converge.

    Quote Originally Posted by ergotelis View Post
    3x Xp-g R5 versus 3x Xr-E R2 there is a barely noticeable improvement in performance, according to ceil bounce results. This is not in par with the emitter difference.
    Well, a ceiling bounce is just one crude measure. By eye, the 3xR5 seems brighter to me than the 3xR2 - likely because of the broader hotspot.

    My lightbox reports it as higher. Although note that my lightbox is not linear across outputs. Based on a comparison of lights with known integrating sphere results to my lightbox, I can roughly estimate a correction factor. In this case, I would estimate that the 3xR5 is at least 15% brighter than the 3xR2 in my lightbox.

    Also, SST50 was referred to be much worse than P7 edition by various other members.
    That makes me think that quality control of Eagletac is not that good.
    It is kind of luck if you receive a good flashlight?At least according to their specs?
    I'm only aware of one example of a "much worse" SST-50, which was the one reviewed by Mev. I suspect he received a defective sample, as the SST-50 I received performed in-line with what I would have expected.

    Has someone else here posted comparison output measures or pics showing lower output of a SST-50 vs the P7?
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  9. #9
    Banned richpalm's Avatar
    Join Date
    Jun 2003
    Location
    Central Pa.
    Posts
    965

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Nice review! Been waiting on this. Looks like the XP-G is a no-brainer.

    Selfbuilt, which do you like better as far as build quality-the M3 or the M40C? I'm ever the skeptic as far as the M3 tailcap goes.

    Rich

  10. #10

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    I had all of the previous M2 series and sold all but the M2XC4. I recently got the M3C4 3xXP-G R5 and the 3x XR-E R2. The M2XC4 had been my favorite thrower because of its powerful performance in a very compact package. (I wish more manufacturers would adapt this configuration).

    When I saw that the M3 XR-E R2 had a LOP reflector I felt cheated because I assumed that throw would be compromised, and white wall suggested a slightly more diffused beam which was good for closer ranges but worrisome for long throw. When I took it and its M2 twin out last night I was very pleasantly surprised because the M3 threw as well as the M2. Then I noticed that the M3 had the new smaller XR-Es.

    I appreciated all the small improvements that Selfbuilt described and also found that head lock-out occurs after only 1/2 - 1-1/4 turns, as opposed to the M2s which needed to be unscrewed uncomfortably close to detachment. I haven't tried the M3 XP-G R5 outdoors yet, but its performance in Selfbuilt's 100 yd beamshots is very impressive.

    It may be my imagination but the new lights seem better balanced, ie less top heavy than the M2's. Probably an illusion.

    Thanks, Selfbuilt for another sterling review. (I now have your review page in my favorites).

    Brightnorm
    Last edited by brightnorm; 10-10-2010 at 05:30 AM.

  11. #11

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by richpalm View Post
    Selfbuilt, which do you like better as far as build quality-the M3 or the M40C? I'm ever the skeptic as far as the M3 tailcap goes.Rich
    I'm torn. Sitting on my desk right now is the M40C and the M3C4 3xR5 XP-G with clicky switch installed. Can't decide which one to "retire" and which to keep out for emergency duty.

    I can't help but feel that the M40C has a better switch design (also like the two-piece handle, instead of 3-piece). It also has the advantage of tailstanding - used it just the other day when hanging a chandelier (funny story - pulled it out and turned it on, and one of the young guys helping me said "whoa, an HID" ).

    But I like the beam of 3xR5 M3C4 better for outdoor use. I guess I'll keep 'em both around for awhile.

    Quote Originally Posted by brightnorm View Post
    When I saw that the M3 XR-E R2 had a LOP reflector I felt cheated because I assumed that throw would be compromised, and white wall suggested a slightly more diffused beam which was good for closer ranges but worrisome for long throw. When I took it and its M2 twin out last night I was very pleasantly surprised because the M3 threw as well as the M2.
    Yeah, "LOP" is new standard for all Eagletac lights now. Glad to hear it performed as well as the old M2XC4.

    I appreciated all the small improvements that Selfbuilt described and also found that head lock-out occurs after only 1/2 - 1-1/4 turns, as opposed to the M2s which needed to be unscrewed uncomfortably close to detachment. ... It may be my imagination but the new lights seem better balanced, ie less top heavy than the M2's. Probably an illusion.
    Good points - yes, the head doesn't need to be unscrewed as much now as it used to (although I would say it's ~2/3 of full turn on my samples).

    I also find them better balanced - likely due to to ~20g reduction in weight (largely in the head).
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  12. #12

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by selfbuilt View Post
    ...I can't help but feel that the M40C has a better switch design (also like the two-piece handle, instead of 3-piece). It also has the advantage of tailstanding - used it just the other day when hanging a chandelier (funny story - pulled it out and turned it on, and one of the young guys helping me said "whoa, an HID" ).
    I use a clipless lanyard and My M3's tailstand with no problem.

    Quote Originally Posted by selfbuilt View Post
    Yeah, "LOP" is new standard for all Eagletac lights now. Glad to hear it performed as well as the old M2XC4.
    My throw test was informal, nowhere near the exactness of yours, so it's possible that the M2XC4 might slightly out-throw the M3 XR-E R2. NTL, they are both very close.

    Brightnorm
    Last edited by brightnorm; 10-10-2010 at 03:20 PM.

  13. #13

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    I apologize for asking this in this thread, but:

    Could some on please explain to me, how/where to buy the 3XR5 version of this WITH THE CLICKY TAILCAP.

    I have been looking every where on the internet, and i cant seem to find the light for sale, INCLUDING the clicky.

    I am in the USA, if that matters.

    Also, could some one who owns it, please explain the clicky conversion to me? I REALLY liked the fact that this conversion, #1 stops the parasitic draw, and #2 basically turned the light into a surefire invictus.... you just dial and LEAVE the light at the setting you want, and then push the tailcap for momentary or constant ON.

    i am liking this a LOT
    The power of the sun in the palm of my hand.

  14. #14

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Thanks for the excellent (as always) review.

    It's interesting to note that the SST50 model is actually a bit more efficient than the P7 model, hope it will stop people repeating ad nauseam that the sst50 are much less efficient than the P7 and MCE, this fallacy is getting old.

  15. #15
    Flashaholic* HIDblue's Avatar
    Join Date
    Mar 2010
    Location
    California
    Posts
    872

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    I wonder how these will fare against the Olight SR50?
    My dog ate my flashlight...

  16. #16
    Flashaholic*
    Join Date
    May 2007
    Location
    Greece/Hellas/Crete
    Posts
    739

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by romteb View Post
    It's interesting to note that the SST50 model is actually a bit more efficient than the P7 model, hope it will stop people repeating ad nauseam that the sst50 are much less efficient than the P7 and MCE, this fallacy is getting old.
    Well i guess that you might be referring to me, i have no marketing reason to blame the sst50 leds or eagletac, i just have some clues that these leds might not be up to specs. It might be just me and some other members that might
    had bad luck and took bad emitters or faulty flashlights.
    In fact, this review makes me just want to buy another Eagletac flashlight too!

  17. #17
    Flashaholic*
    Join Date
    Jul 2007
    Location
    Central Europe
    Posts
    1,585

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by romteb View Post
    It's interesting to note that the SST50 model is actually a bit more efficient than the P7 model, hope it will stop people repeating ad nauseam that the sst50 are much less efficient than the P7 and MCE, this fallacy is getting old.
    This is the first SST-50 flashligh that is more efficient than P7/MC-E. Let's just hope that it wasn't carefully hand picked for this review.

  18. #18
    Flashaholic*
    Join Date
    Jul 2005
    Location
    illuminationGear
    Posts
    672

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    awesome review Selfbuilt - as always...

    StainlessSteel:
    I am not sure where the confusion is...
    the M3C4 lights come with the clicky tail cap switch kit from the factory -
    ie. all 7 models of the M3C4 lights from all the EagleTac dealers include a clicky switch kit with the light - that the user can install if desired.
    All the dealer listings I have looked at mention this.
    Or, are you referring to a PRE-installed clicky switch? Some dealers will pre-install it for you if you ask nicely.

    Tod

    Quote Originally Posted by StainlessSteel View Post
    I apologize for asking this in this thread, but:

    Could some on please explain to me, how/where to buy the 3XR5 version of this WITH THE CLICKY TAILCAP.

    I have been looking every where on the internet, and i cant seem to find the light for sale, INCLUDING the clicky.

    I am in the USA, if that matters.

    Also, could some one who owns it, please explain the clicky conversion to me? I REALLY liked the fact that this conversion, #1 stops the parasitic draw, and #2 basically turned the light into a surefire invictus.... you just dial and LEAVE the light at the setting you want, and then push the tailcap for momentary or constant ON.

    i am liking this a LOT
    the reality of life... 50% +/- of it will be in darkness(unless you have a light!) dba
    - compare lights

  19. #19

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by brightnorm View Post
    I use a clipless lanyard and My M3's tailstand with no problem.
    Oh yes, it tailstands fine with the regular switch - it's just the clicky switch that can't tailstand.

    Quote Originally Posted by StainlessSteel View Post
    Could some on please explain to me, how/where to buy the 3XR5 version of this WITH THE CLICKY TAILCAP.
    Hmm, that's odd. I thought the clicky switch was a standard accessory (it was included inside the box, for each light received). Usually, optional accessories (like the YRGB filters) come separately.

    Maybe check with the dealers to see what is actually included? Could be the website specs are out of date.

    UPDATE: Checking out a few dealers, I think the confusion comes from how the clicky switch is being listed. Typically, it is not listed in the "included accessories" section - rather, it is often mentioned at the top of the feature set, or in a special note at the bottom. As lebox97 noted, it is included with all lights - if any dealer neglects to mention it, I would suggest you just contact them to clarify.

    Quote Originally Posted by romteb View Post
    It's interesting to note that the SST50 model is actually a bit more efficient than the P7 model, hope it will stop people repeating ad nauseam that the sst50 are much less efficient than the P7 and MCE, this fallacy is getting old.
    Well, one point here is that over time, output bins tend to increase for any given emitter class. It may just be that the current crop of SST-50s are slightly more efficient than the older crop of SSC P7s reviewed in the older M2C4 sample.

    In any case, the much more even hotspot of the SST-50 is a lot more attractive to me than the dark center void of P7/MC-E lights (even with ET's sanding trick for the P7).
    Last edited by selfbuilt; 10-11-2010 at 08:44 AM.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  20. #20

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    This is probably off-topic, Selfbuilt please let me know if you want me to remove this message, i dont want to trash your valuable work.

    Quote Originally Posted by ergotelis View Post
    Well i guess that you might be referring to me
    In all honesty i cannot remember each person who repeat that, i just nocticed the trend.

    I see a few reasons to it.

    1) when the sst first became available some drop in makers flooded the market with lower bin sst.

    2) sst are oftenly used in direct drive application or high current applications, where the higher currents gives lower runtimes with a diminishing return in lumens increase and produces more heat adversly affecting the ouput because few of these torches have the necessary heatsinking to dissipate the heat.

    3)Hearsay.

    I even read here recently that PhlatLight numbers were not to be trusted...

    Phlatlight makes great products that stimulates the competition, the bashing is unfair.

    Thing is, when driven like a P7 or MCE a top bin sst50 will give approximately the same output and can be driven to much higher current for some extra oomph, i dont see how that makes it an inferior product.

    That said, of all the eagletacs M3 i think the 3x xp-g has by far the better beam profile.
    Last edited by romteb; 10-11-2010 at 10:35 AM.

  21. #21

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Selfbuilt, thanks for the review. i owned the triple xpg version and truly a nice light. the length and weight are just nice in the hand. real bright too.

  22. #22

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by romteb View Post
    That said, of all the eagletacs M3 i think the 3x xp-g has by far the better beam profile.
    Quote Originally Posted by nitric View Post
    i owned the triple xpg version and truly a nice light. the length and weight are just nice in the hand. real bright too.
    Interesting how there seems to be such general agreement on the 3x XP-G model having the best beam pattern.

    I would have thought people would naturally gravitate to single-emitter versions. They just seem conceptually more elegant (plus bragging rights of saying "just one" when someone asks you how many LEDs are in that bright light you are carrying ).

    But going all the way back to my Lumapower MVPs, I've always found the 3x versions to give a more useful beam at almost all distances. Of course, there are exceptions (e.g. despite the MC-E dark center, I still like the JetBeam M1X as a thrower). And the SST-based light have a nice smooth hotspot (if a bit broader than typical).
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  23. #23

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    great review! i just ordered the 3xR5 XPG. can't wait!

  24. #24

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    I love my M2's and M3's but why did Eagletac decide to "upgrade" its battery carriers so they are unusable with common flat-tops? I won't use magnets, they are potentially dangerous. Luckily, I had a couple of extra M2 carriers which I now use in my M3's.

    Any ideas why Eagletac made this change?

    Brightnorm
    Last edited by brightnorm; 10-16-2010 at 09:56 PM.

  25. #25

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    since im a noob and a first timer to use the 18650s, i played safe by using the eagletac 18650s.

    i got mine about 2-3 weeks ago but the hard anodized coating was not complete in one small section on the head and i returned it for warranty. The replacement should be arriving be later part of next week. so nice customer support specially from the local dealer in malaysia

  26. #26

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    I received my triple xpg today, very happy. I also had to use my own hex tool for one of the screws when I changed it to the clicky.

  27. #27

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Nice review and nice flashlights!!

    Anyway I'm a bit upset, I was waiting these new models since long time and now I see that they didn't come out with new neutrals.

    I'd love to have a 3xXP-G R4.... why to stick on old Q4??

    Anyway, does anybody know if there is a discount code for cpf members on the eagletac-usa store to use during check-out?

  28. #28

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    deleted

  29. #29
    Flashaholic* HIDblue's Avatar
    Join Date
    Mar 2010
    Location
    California
    Posts
    872

    Sigh Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Just received my Eagletac M3C4 triple XP-G and I'm already having some major issues with the plastic tail cap and hex screws. The hex screws are not uniform in size and are very susceptible to stripping.

    Of the 4 hex screws that secured the plastic tail cap to the body of the M3C4, 2 of the hex screws were 1.5mm in size while the other 2 hex screws were 1/16" in size. The light comes with a 1.5mm hex/allen wrench, so I'm not sure why 1/16" hex screws were used in the light. Just like selfbuilt, I had to use my own hex/allen wrench to remove the 1/16" hex screws and used the Eagletac provided 1.5mm hex wrench to remove the 1.5mm hex screws.

    The Eagletac instructions warn you not to overtighten the hex screws so I replaced the flat tail cap with the clicky tail cap to avoid the parasitic drain and took extra care not to overtighten the hex screws. As cautious as I was, I still managed to strip one of the hex screws and the hex screw head wasn't even flush with the tail cap.

    So now I'm stuck with a stripped hex screw in the clicky tail cap attached to the body of the M3C4 and have tried everything to remove it without success...including using various hex/allen wrenches, torx wrenches, and even a damaged screw extractor kit...nothing worked. I can't be super-invasive in removing the stripped hex screw since the tail cap is made of plastic.

    Given that the Eagletac instruction manual states that the Eagletac warranty will NOT cover damage caused by stripped mounting screws, it seems abundantly clear that Eagletac is aware of the design flaw with the plastic tail cap and hex screws and the damage a stripped screw can cause and have included this clause as a CYA.

    Unfortunately for me, that means my brand new Eagletac M3C4 will probably be relegated to shelf-queen status as I do not have confidence that the light is mechanically reliable and/or sturdy enough for duty use. It's regretful, to say the least, that I wasted my hard earned money on a light that I won't be able to use for it's intended purpose...i.e. work/field use.

    It's hard to believe that Eagletac would use such inferior materials for the tail cap and hex screws, yet the rest of the M3C4 (head, body, etc.) seems to be well made. The old adage holds very true in this instance, 'you're only as strong as your weakest link,' and in this case, the M3C4's weakest link is the plastic tail cap and inferior quality hex screws used to secure the tail cap to the body of the light.

    Prospective buyers should be made aware of this flaw with the Eagletac M3C4. I can't imagine that I'm the only one who's had this problem. Caveat emptor.
    Last edited by HIDblue; 10-24-2010 at 01:20 AM.
    My dog ate my flashlight...

  30. #30

    Default Re: Eagletac M3C4 - SST-50 and 3xR5 XP-G - Reviews: BEAMSHOTS, RUNTIMES, and more!

    Quote Originally Posted by HIDblue View Post
    Of the 4 hex screws that secured the plastic tail cap to the body of the M3C4, 2 of the hex screws were 1.5mm in size while the other 2 hex screws were 1/16" in size. The light comes with a 1.5mm hex/allen wrench, so I'm not sure why 1/16" hex screws were used in the light. Just like selfbuilt, I had to use my own hex/allen wrench to remove the 1/16" hex screws and used the Eagletac provided 1.5mm hex wrench to remove the 1.5mm hex screws.
    Interesting. There's only a ~5% difference between 1.5M and 1/16", so it's possible it is just a question of poor tolerances in the manufacture (i.e. they intended to do 1.5mm, but got something closer to 1.59mm?).

    So now I'm stuck with a stripped hex screw in the clicky tail cap attached to the body of the M3C4 and have tried everything to remove it without success...including using various hex/allen wrenches, torx wrenches, and even a damaged screw extractor kit...nothing worked. I can't be super-invasive in removing the stripped hex screw since the tail cap is made of plastic.
    That really sucks. I've never had much success with screw extractor kits for stripped regular screws - and I imagine you'd have less luck with such tiny stripped hex screws.

    Have you tried a 7/64" hex bit screwdriver to try and get it out (i.e. not a key)? I know that's nearly twice as big as needed, but I found that it did the trick for me for the one screw that wouldn't come out. Rather than use a key, I used a jeweler's screwdriver with the 7/64" bit (makes it much easier to apply downward force while unscrewing). This would be my main recommendation to try.

    Anyone else have any suggestions for getting that screw out of there?

    Given that the Eagletac instruction manual states that the Eagletac warranty will NOT cover damage caused by stripped mounting screws, it seems abundantly clear that Eagletac is aware of the design flaw with the plastic tail cap and hex screws and the damage a stripped screw can cause and have included this clause as a CYA. ... Prospective buyers should be made aware of this flaw with the Eagletac M3C4. I can't imagine that I'm the only one who's had this problem. Caveat emptor.
    Thanks for pointing that out, I hadn't noticed that warranty statement. I will update the review with this info under the Potential Issues section, as well as the earlier section where I first discussed the screw issue.

    Good luck getting that screw out!

    P.S.: If all else fails, try contacting your dealer. Even though it isn't covered under Eagletac's warranty, you never know ...
    Last edited by selfbuilt; 10-25-2010 at 11:04 AM.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

Page 1 of 2 12 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
